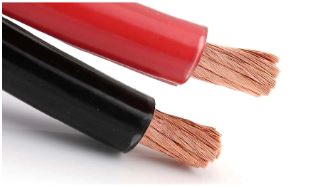

BATTERY CABLE

BATTERY CABLE


DESCRIPTION

This specification covers the requirements for flexible single conductor motor lead and coil lead wire and meets the requirements of UL subject 758 and CSA C22.2 #210.2. This UL 3311 product is suitable for use as battery cable, welding cable, motor leads and other DC power applications including the internal wiring of appliances and uninterruptible power supply systems. This cable is acid-resistant and certified zero-halogen.

STRANDING

Class K Bare Copper

STANDARD

UL 3311 & UL 3279

INSULATION

UNIQUE Battery Systems Cable is insulated with a thermoset EPDM insulation that has excellent abrasion resistance, strip ability, flexibility and dielectric strength. It is also RoHS compliant.

VOLTAGE

600 Volts

TEMPERATURE

UL Style 3311 at 90 degrees Celsius

UL Style 3279 at 105 degrees Celsius




CONTACT KARL MONDSCHEIN FOR CURRENT PRICING
