CABLE - SEOPRENE SEOOW CABLE
SEOPRENE® SEOOW
SEOPRENE® SEOOW 105°C TPE Cord. 600 Volts. Black Jacket. Rated -50°C to 105°C. RoHS Compliant Rated as Extra Hard-Usage Service Cord.
Sizes 18 AWG - 10 AWG CSA Certified as Type STOOW (TPE) and meet CSA FT-2. Sizes 8 AWG - 2 AWG are non-UL and non-CSA Listed.
Listed for Outdoor Use. Provides Premium Oil Resistance, Water Resistance and Flexibility.
APPLICATIONS:
UNIQUE LIFT PARTS INC. Type SEOOW Flexible Cords are permitted for use as specified by Article 400 and related articles of the 2014 National Electrical Code. Some typical applications for Type SEOOW Cords include wiring for industrial machinery, washing machines and various other large appliances, heavy-duty tools, motors, and temporary electrical power and lighting installations for construction sites. Type SEOOW Cords are suitable for use in (i) dry locations not to exceed minimum -50°C or maximum 105°C; or (ii) wet locations or other applicable locations - may be completely immersed in water - when exposed to oil or coolant at temperatures not to exceed 60°C. Type SEOOW cords are ideal for flex applications in harsh environments where the highest degree for oil resistance and extended service life are essential.
SPECIFICATIONS
- UL 62
- CSA Standard 22.2 No. 49
- MSHA flame resistance for Mining Applications - P-241-3-MSHA
- Federal Specification J-C-580B
- NEC Article 400
- OSHA acceptable
- RoHS
Sizes 8 AWG through 2 AWG are non-UL and non-CSA Listed, but meet industry accepted standards for the insulation and jacket thickness.

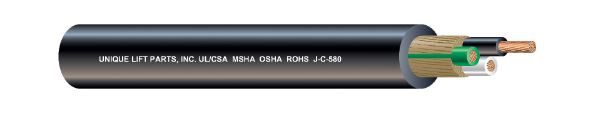

CONSTRUCTION
UNIQUE Type SEOOW Flexible Cords are manufactured using bare flexible stranded Class K copper conductors per ASTM.
______________________________________________________________________________________________________________________
QuantumTPE SEOOW Black

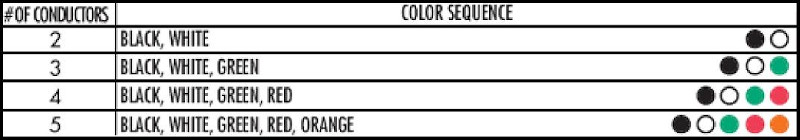

B-174, and heat, moisture and oil resistant 105°C color-coded TPE insulation. The insulated conductors are cabled with non-wicking polypropylene fillers, with a tissue-paper separator wrapped around the assembly to promote easier removal of the jacket. A heat, moisture and oil resistant flexible TPE jacket is extruded over the assembly to complete the construction. Some sizes may be subject to minimum order quantity.
Conductor (AWG) |
Conductor |
Nominal Insulation Thickness (Inches) |
Nominal |
Nominal |
Weight |
Ampacity* |
18/2 |
16 X 30 |
0.030 |
0.060 |
0.350 |
52 |
10 |
18/3 |
16 X 30 |
0.030 |
0.060 |
0.370 |
64 |
10 |
18/4 |
16 X 30 |
0.030 |
0.060 |
0.395 |
78 |
7 |
18/5 |
16 X 30 |
0.030 |
0.080 |
0.465 |
102 |
7 |
16/2 |
26 X 30 |
0.030 |
0.060 |
0.375 |
63 |
13 |
16/3 |
26 X 30 |
0.030 |
0.060 |
0.395 |
80 |
13 |
16/4 |
26 X 30 |
0.030 |
0.060 |
0.425 |
96 |
10 |
16/5 |
26 X 30 |
0.030 |
0.080 |
0.500 |
135 |
8 |
14/2 |
41 X 30 |
0.045 |
80.00 |
0.505 |
131 |
18 |
14/3 |
41 X 30 |
0.045 |
0.080 |
0.530 |
167 |
18 |
14/4 |
41 X 30 |
0.045 |
0.080 |
0.575 |
206 |
15 |
14/5 |
41 X 30 |
0.045 |
0.095 |
0.655 |
219 |
12 |
12/2 |
65 X 30 |
0.045 |
0.095 |
0.580 |
155 |
25 |
12/3 |
65 X 30 |
0.045 |
0.095 |
0.605 |
190 |
25 |
12/4 |
65 X 30 |
0.045 |
0.095 |
0.655 |
233 |
20 |
10/2 |
104 X 30 |
0.045 |
0.095 |
0.625 |
197 |
30 |
10/3 |
104 X 30 |
0.045 |
0.095 |
0.660 |
243 |
30 |
10/4 |
104 X 30 |
0.045 |
0.095 |
0.715 |
301 |
25 |
8/2** |
65 X 26 |
0.050 |
0.060 |
0.635 |
300 |
40 |
8/3** |
65 X 26 |
0.050 |
0.060 |
0.665 |
315 |
40 |
8/4** |
65 X 26 |
0.050 |
0.060 |
0.740 |
400 |
35 |
6/3** |
133 X 27 |
0.050 |
0.060 |
0.805 |
470 |
45 |
6/4** |
133 X 27 |
0.050 |
0.080 |
0.930 |
635 |
45 |
4/3** |
133 X 25 |
0.050 |
0.080 |
0.980 |
710 |
70 |
4/4** |
133 X 25 |
0.050 |
0.080 |
1.075 |
920 |
60 |
2/3** |
162 X 24 |
0.050 |
0.080 |
1.120 |
1015 |
95 |
2/4** |
162 X 24 |
0.050 |
0.080 |
1.240 |
1330 |
80 |
*Ampacity values are based on NEC Table 400.5(A) for sizes 18 AWG through 2 AWG. |
